61301221021
Manufacturer:
Wurth Electronics
Mfr.Part #:
61301221021
Datasheet:
Description:

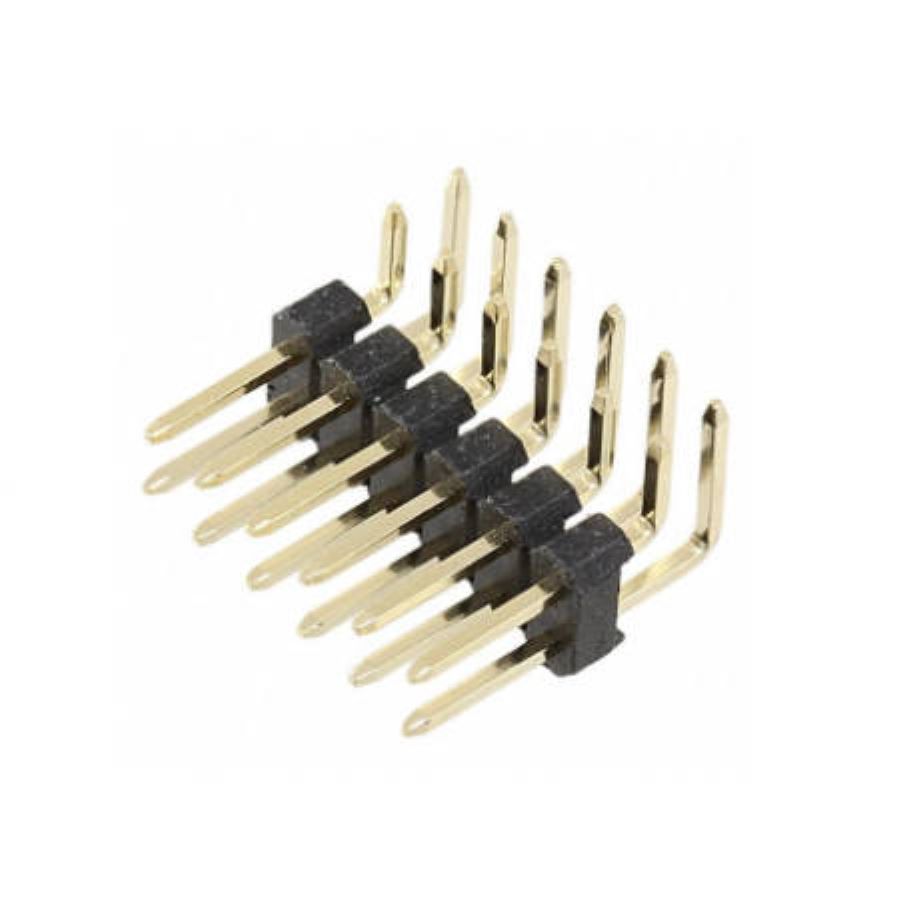

Headers and Wire Housings Through Hole Male Pin Number of Positions:12 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Packaging | Bulk |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Operating Supply Voltage | 250 V |
| Color | Black |
| Gender | Male |
| Number of Contacts | 12 |
| Connector Type | Male Pin |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Contact Resistance | 20 mΩ |
| Contact Mating Length | 5.9944 mm |
| Mating Post Length | 6 mm |
| Termination Post Length | 3 mm |
Stock: 2727
Distributors
pcbx
pcbxUnit Price$0.54398
Ext.Price$0.54398
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54398 | $0.54398 |
| 10 | $0.45992 | $4.59920 |
| 25 | $0.38343 | $9.58575 |
| 50 | $0.31985 | $15.99250 |
| 100 | $0.29057 | $29.05700 |
| 300 | $0.28211 | $84.63300 |
| 500 | $0.27390 | $136.95000 |
| 1000 | $0.26592 | $265.92000 |
